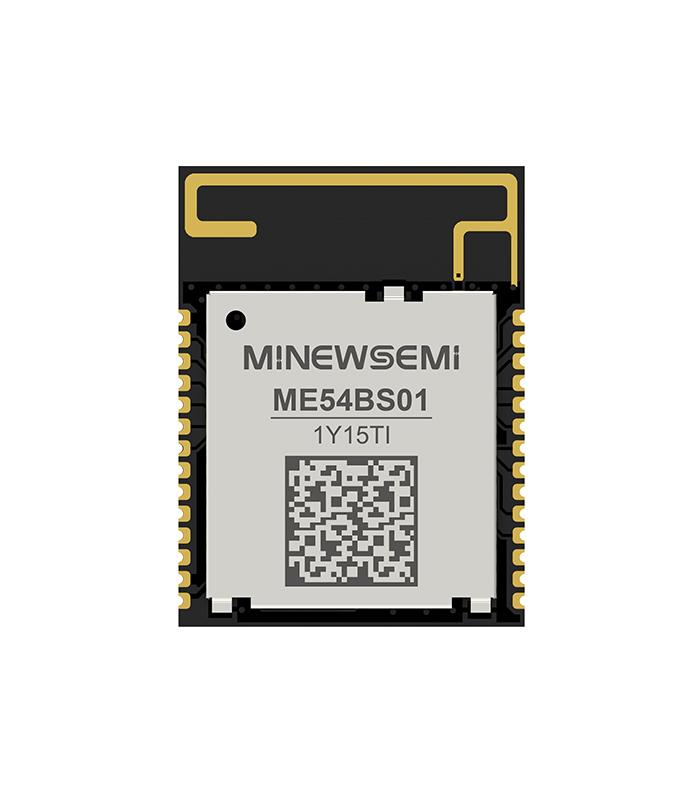

NRF54L15-ME54BS01

High Cost Performance, Ultra-low Power Bluetooth 6.0 LE Module with PCB Antenna

Supports Bluetooth LE 6.0 Channel Sounding, Bluetooth Mesh, Zigbee, Thread, Matter, and proprietary 2.4 GHz protocols
Equipped with 128 MHz Arm Cortex-M33 processor
Compact dimensions: 23.2*17.4*2mm
Superior transmission power: Max TX +8 dbm
Exceptional receiver sensitivity: -96 dBm at 1Mbps
1.5 MB non-volatile memory + 256 KB RAM
PSA Certified Level 3 security
Operating temperature range:-40°C~+105°C
Planned Certifications: BQB, FCC, CE, Ic, Telec, KC, Rcm…

$4.00

Modelo no.	ME54BS01
Antena	PCB
Socset	Nórdico NRF54L15
Faixa máxima	170M
Dimensão(mm)	23.2×17.4×2.0mm
Clarão	1.5Mb
BATER	256KB
Sensibilidade à recepção	-96dbm
Poder de transmissão	-8~+8dBm
Atual(Tx)	0dBm-5mA
Atual(Rx)	3.2MA
Gpio	19
Certificação	/
Aplicações	Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT

Modelo no.	ME54BS01
Antena	PCB
Socset	Nórdico NRF54L15
Faixa máxima	170M
Dimensão(mm)	23.2×17.4×2.0mm
Clarão	1.5Mb
BATER	256KB
Sensibilidade à recepção	-96dbm
Poder de transmissão	-8~+8dBm
Atual(Tx)	0dBm-5mA
Atual(Rx)	3.2MA
Gpio	19
Certificação	/
Aplicações	Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT
