ME16WS01

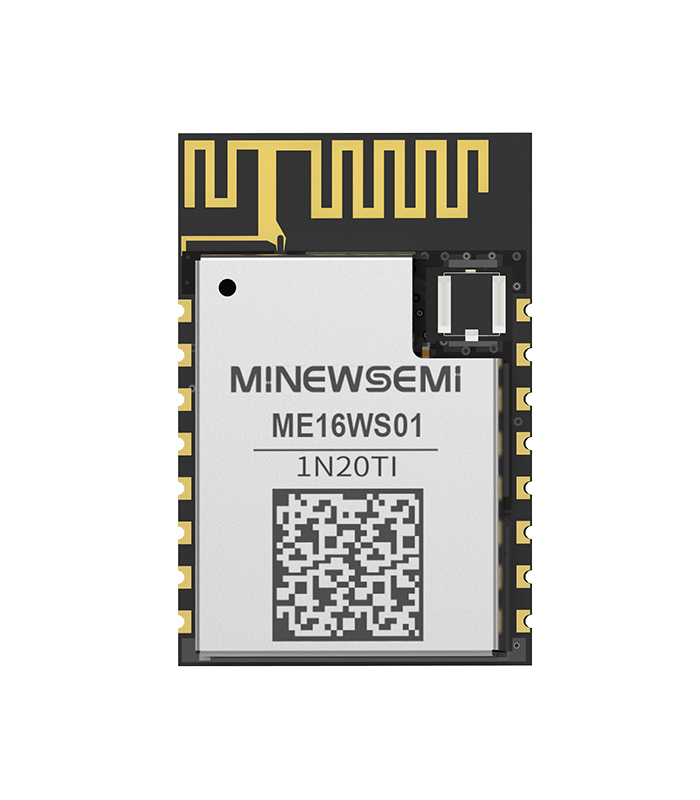

RTL8720DN-ME16WS01

Dual-core High Performance Bluetooth 5.0 Wi-Fi Dual Band Module

  • Bluetooth 5.0
  • Dual-core high performance
  • IEEE802.11 a/b/g/n, 2.4GHz & 5GHz
  • Support HT20/HT40 mode
  • Support optional PCB/IPEX antenna
  • Support WiFi AP/STA/AP+STA mode
  • Supports built-in AES/DES/SHA hardware engine

$3.50

1995 in stock

Compare
Add to wishlist

ME16WS01

Model No. ME16WS01
Antenna PCB/IPEX
SoCset RTL8720DN
Wi-Fi  Version Wi-Fi4（802.11 b/g/n）
Bluetooth Version BLE5.0
Dimension(mm) 24x16x3.4mm
Flash 2MB
RAM 512KB+64KB
Current(TX) 2.4G-48mA
Current(RX) /
Sleep Current /
GPIO 11
Features WiFi4 2.4G+5G，
BLE5.0, Uart Interface, support STA/AP/STA+AP Mode

ME16WS01

ME16WS01-RTL8720DN_Datasheet_K_EN
