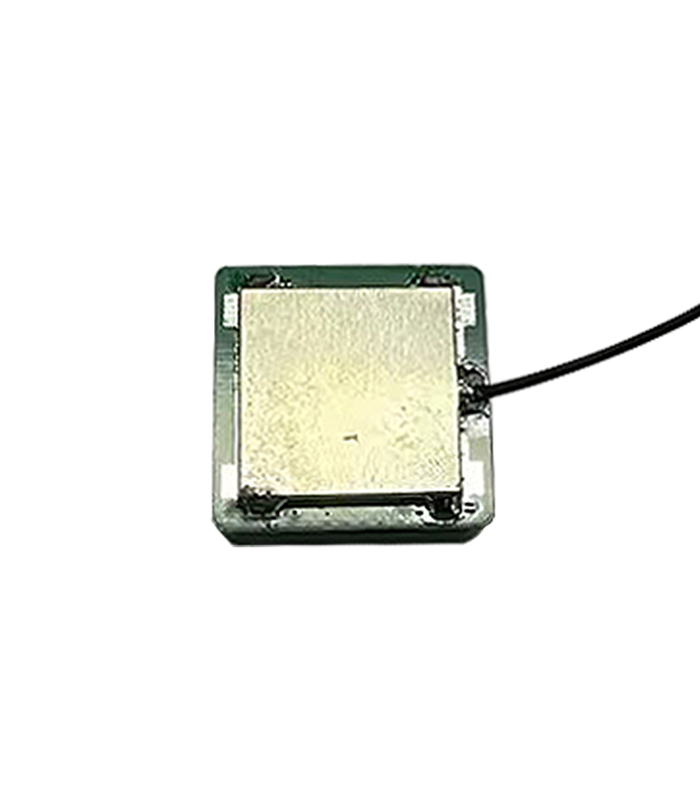

AH124-N01-GNSS Active Antenna

Dual-band High-precision Active Antenna

The antenna unit is characterized by high gain and small gain roll-off, which is good for low-elevation satellite signal reception.
Low noise figure and high gain.
Electrostatic protection: 15KV (air discharge).
Small size, easy integration.

$8.00

Antenna Element	L1: 18184MM L5: 25254MM
Satellite System	BEIDOU: B1l/B2a； GPS: L1/L5； Galileo: E1/E5a； GLONASS: G1； QZSS: L1/L5； IRNSS L5
Frequency Range	/
Ranging Accuracy	≤1.5m (1σ) RTK: ≤10cm (1σ)

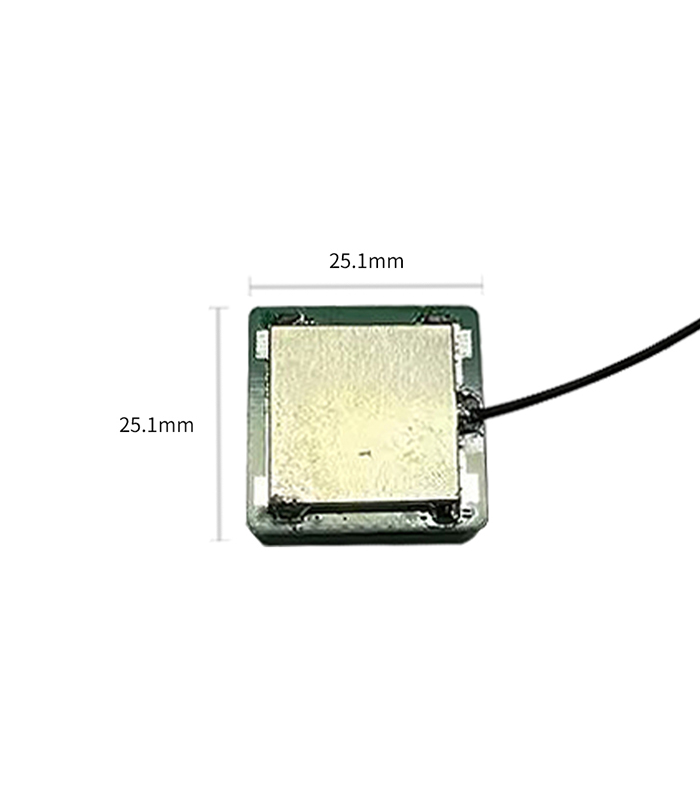

Dimension(MM)	25.125.112MM Φ1.13mm, L=100mm
Supply Voltage	3.0~5.0V 3.3V Type
Operating Current	12 mA Avg
Antenna Gain	≥2.0 dBi
LNA Gain	18dB±2dB
Output VSWR	≤2.0
Interface	IPEX-1 Male
Cable Length	100MM
Waterproof Rate	/
Features	L1+L5 five-star dual-band, All-constellation GNSS, Laminated multi-feed dielectric, Internal antenna
