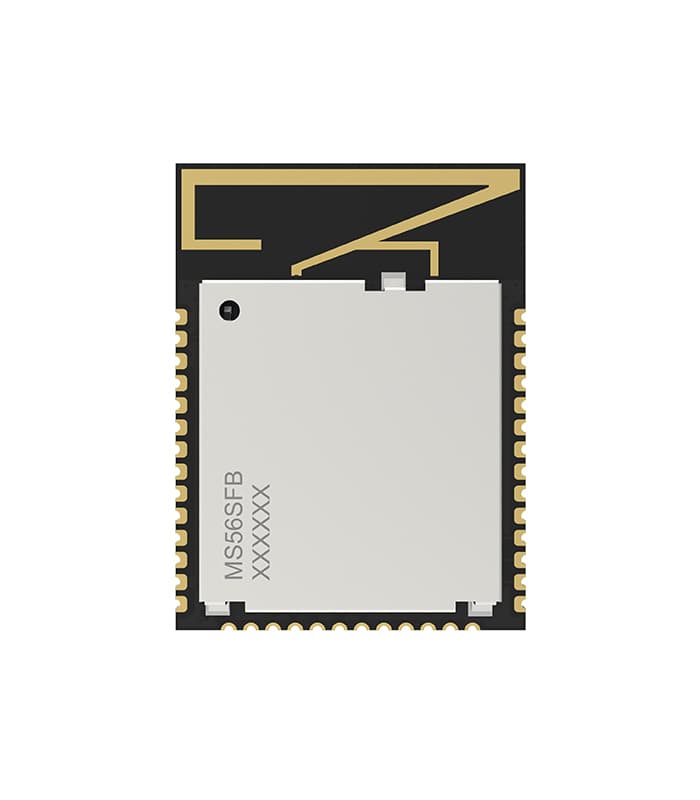

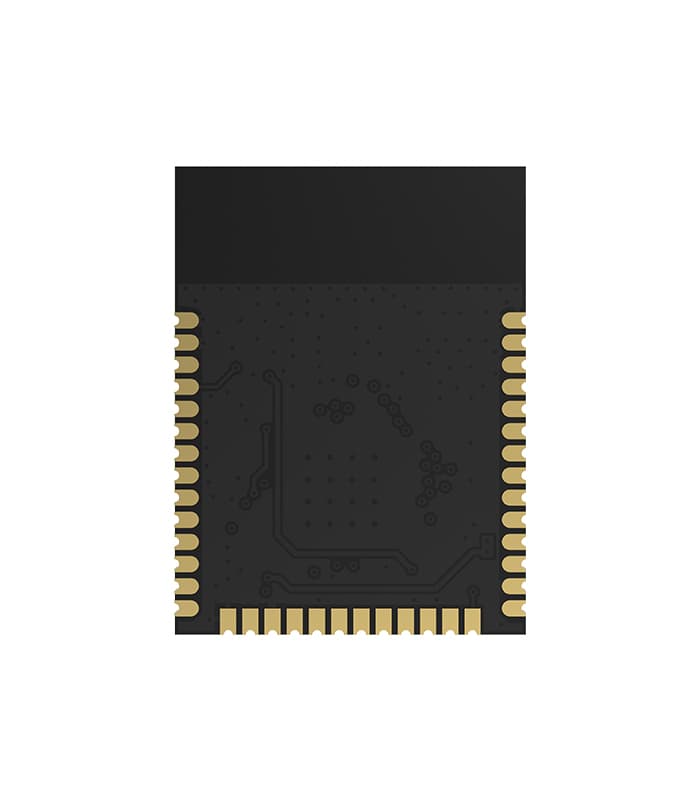

IN628E-MS56SFB

Ultra-low Latency Bluetooth Module

Built-in PA: SKY66111
Minimum communication distance of 820 meters at 1Mbps rate
Ultra-low latency, Bi-directional synchronous communication
Supports optional external antenna
Up to 128 nodes in a single network with InPlay SMULL engine
Hardware security engine with support for AES128, AES256, SHA-1, SHA-2 and ECC encryption and decryption algorithms

$7.00

1990 in stock

Model No.	MS56SFB
Antenna	PCB
SoCset	INPLY IN628E
Max Range	180~400M
Dimension(mm)	23.2×17.4×2mm
Flash	512KB
RAM	384KB
Reception Sensitivity	-97.5dBm
Transmission Power	~+13dBm
Current(TX)	10dBm-15mA
Current(RX)	5mA
GPIO	24
Certification	/
Applications	Smart lighting, Smart lock, Industrial intelligence, Intelligent medical care, Toys, Function switches
