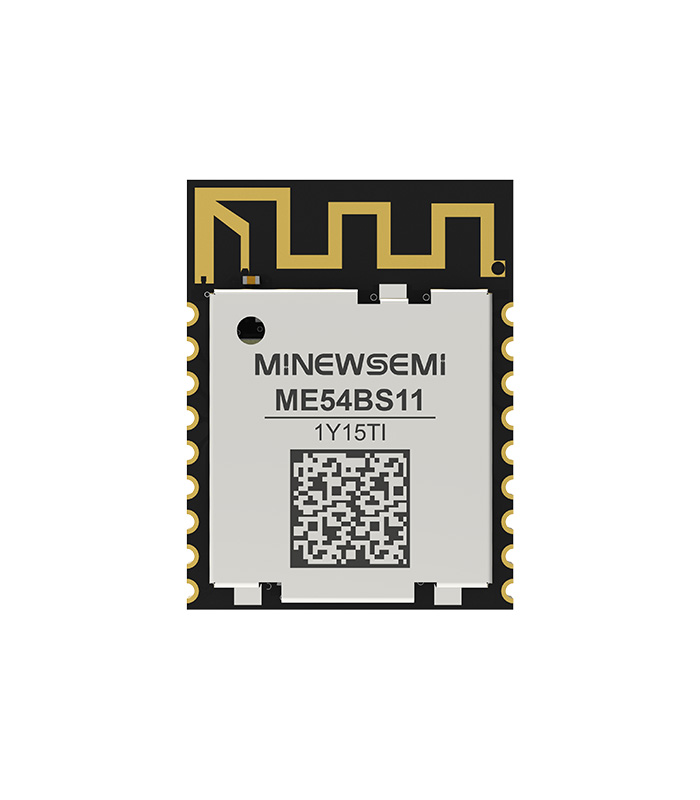

nRF54L05-ME54BS11
Cost-effective, Ultra-low Power Bluetooth 6.0 LE Module
- Powered by Nordic nRF54L05 ultra-low-power Bluetooth 6.0
- Equipped with 128 MHz Arm Cortex-M33 processor
- Dimensions: 15.8*12*2mm
- Superior transmission power: -40~+7dBm
- Exceptional receiving sensitivity: -96 dBm at 1Mbps
- 0.5 MB non-volatile memory + 96 KB RAM
- Operating temperature range: -40°C~+105°C
- GPIO: 12
- Support Bluetooth Mesh, Zigbee, Thread, and proprietary 2.4 GHz protocols
$4.00
Click the button to buy related accessories:
Model No. | ME54BS11 |
---|---|
Antenna | PCB |
SoCset | Nordic nRF54L05 |
Max Range | 80M |
Dimension(mm) | 15.8×12×2.0mm |
Flash | 0.5MB |
RAM | 96KB |
Reception Sensitivity | -96dBm |
Transmission Power | -40~+7dBm |
Current(TX) | 0dBm-5mA |
Current(RX) | 3.2mA |
GPIO | 12 |
Certification | / |
Applications | Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT |
Model No. | ME54BS11 |
---|---|
Antenna | PCB |
SoCset | Nordic nRF54L05 |
Max Range | 80M |
Dimension(mm) | 15.8×12×2.0mm |
Flash | 0.5MB |
RAM | 96KB |
Reception Sensitivity | -96dBm |
Transmission Power | -40~+7dBm |
Current(TX) | 0dBm-5mA |
Current(RX) | 3.2mA |
GPIO | 12 |
Certification | / |
Applications | Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT |
