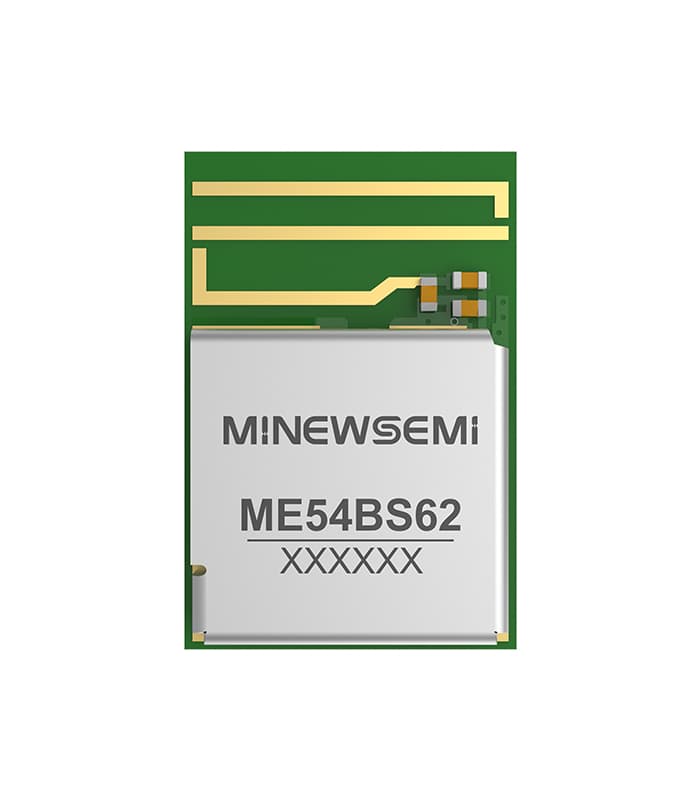

New
nRF54L15-ME54BS62
Ultra-compact Size, Ultra-low Power Bluetooth 6.0 Module With PCB Antenna
- nRF54L15 SoC with 128 MHz Arm® Cortex®-M33, supports custom development
- Bluetooth® LE 6.0 with Channel Sounding
- Ultra-small 6 × 9 × 1.8 mm footprint for compact devices
- Integrated PCB antenna
- Multi-protocol support: Bluetooth Mesh, Zigbee, Thread, Matter, and 2.4 GHz proprietary
- 30 GPIOs supporting TWI, SPI, I2S, UART, PWM
- Superior transmission power: -40~+8dBm
- Exceptional receiving sensitivity: -96 dBm at 1Mbps
- 1524KB NVM + 256 KB RAM
- Operating temperature range: -40°C~+105°C
$5.00
Click the button to buy related accessories:
| Model No. | ME54BS62 |
|---|---|
| Antenna | PCB |
| SoCset | Nordic nRF54L15 |
| Max Range | 10-70m |
| Dimension(mm) | 6×9×1.8mm |
| Flash | 1524KB NVM |
| RAM | 256KB |
| Reception Sensitivity | -96dBm |
| Transmission Power | -40~+8dBm |
| Current(TX) | 0dBm-5mA |
| Current(RX) | 3.2mA |
| GPIO | 30 |
| Certification | / |
| Applications | Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT |
