MS52SF1-TLSR8208G

TLSR8208G-MS52SF11

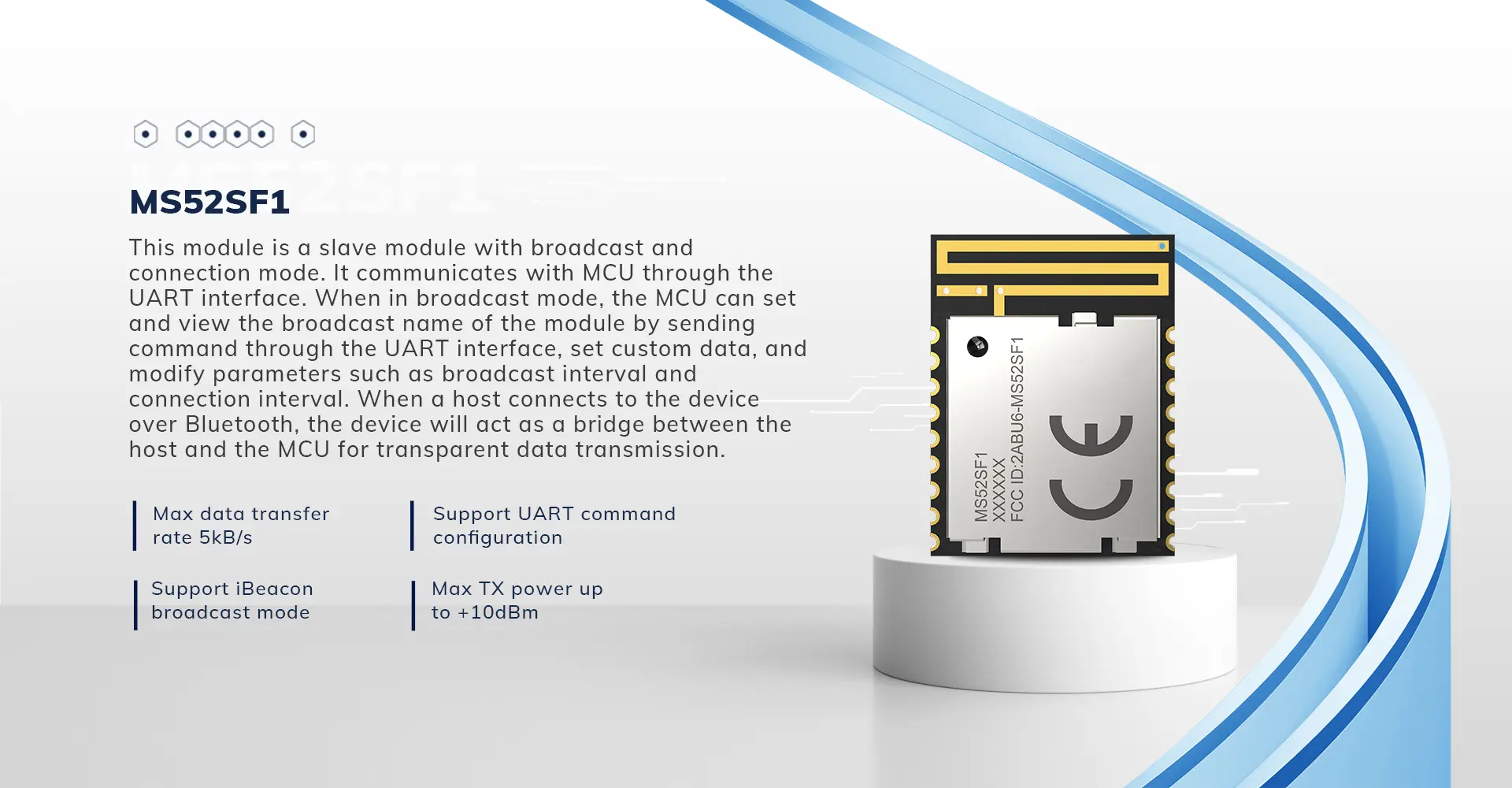

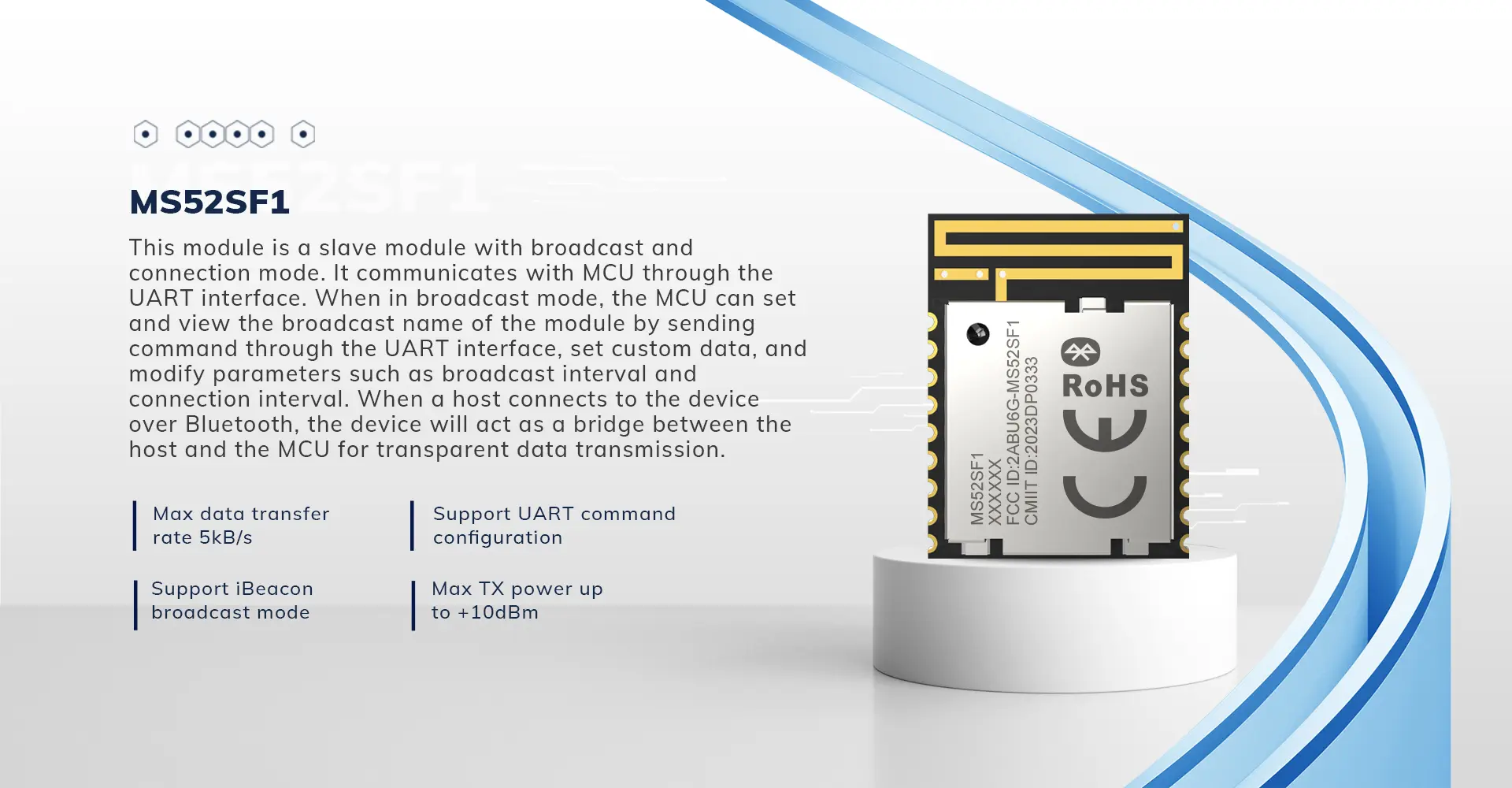

Bluetooth Transparent Slave module

  • The fastest transmission rate can reach 5kB/s
  • Support serial port instruction configuration
  • Supporting iBeacon broadcast mode
  • The maximum transmission power can be configured as +10 dB

$2.00

Compare
Add to wishlist

MS52SF1-TLSR8208G

Model No. MS52SF11
Antenna PCB
SoCset Telink TLSR8208G
Max Range 80M
Dimension(mm) 15.8×12×2mm
Flash 512KB
RAM 20KB
Reception Sensitivity -97dBm
Transmission Power -45~+10dBm
Current(TX) 0dBm-9.5mA
Current(RX) 9.1mA

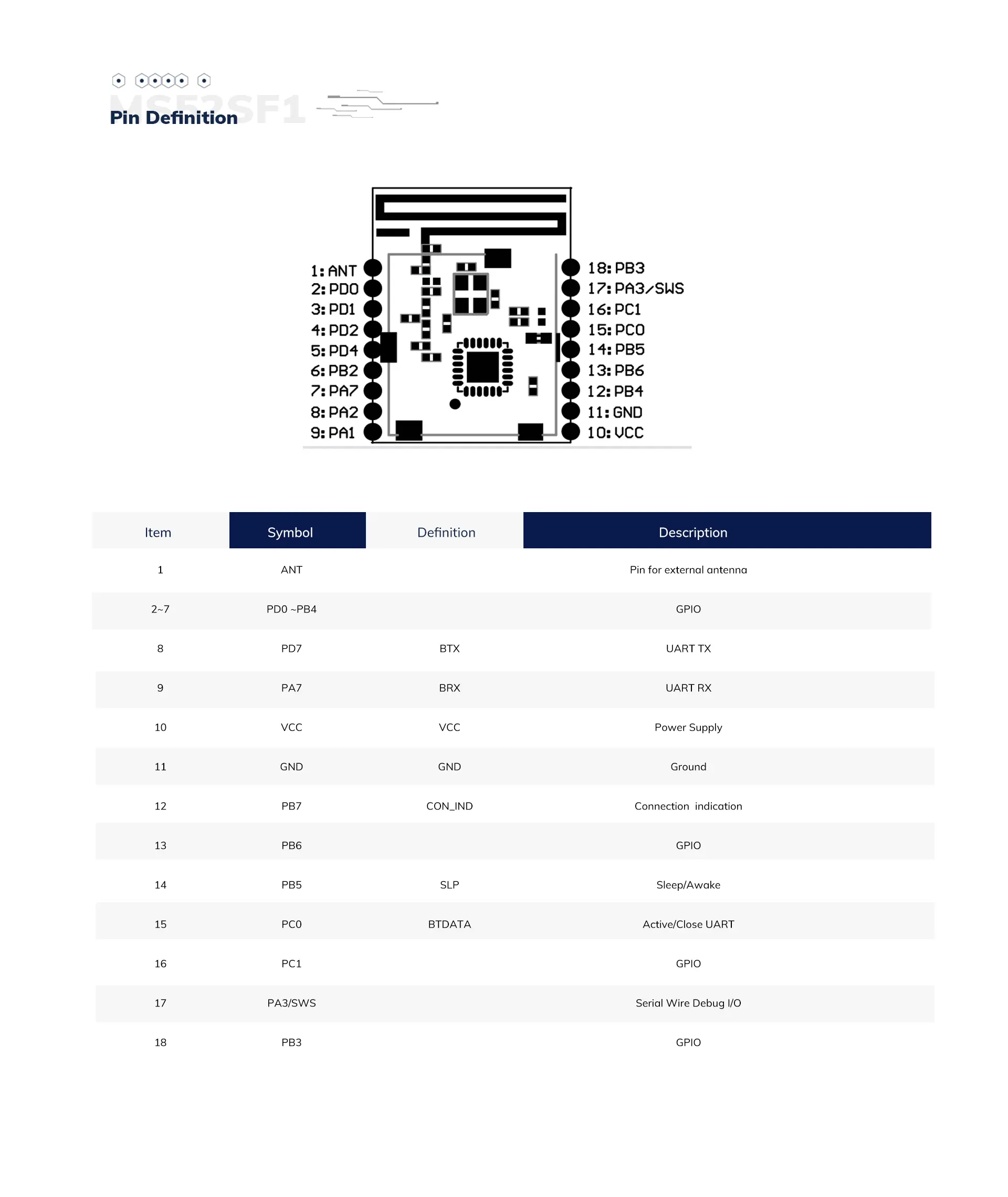

GPIO 14
Certification  CE, FCC
Applications Smart home, smart wearable devices, consumer electronics, smart healthcare, security equipment, automotive equipment, sports and fitness equipment, instruments and meters

MS52SF1-TLSR8208G

MS52SF1-TLSR8208G_Datesheet_C_EN_V1.2.0
Model No. MS52SF11
Antenna PCB
SoCset Telink TLSR8208G
Max Range 80M
Dimension(mm) 15.8×12×2mm
Flash 512KB
RAM 20KB
Reception Sensitivity -97dBm
Transmission Power -45~+10dBm
Current(TX) 0dBm-9.5mA
Current(RX) 9.1mA
GPIO 14
Certification  CE, FCC
Applications Smart home, smart wearable devices, consumer electronics, smart healthcare, security equipment, automotive equipment, sports and fitness equipment, instruments and meters

MS52SF1-TLSR8208G

MS52SF1-TLSR8208G_Datesheet_C_EN_V1.2.0
