New

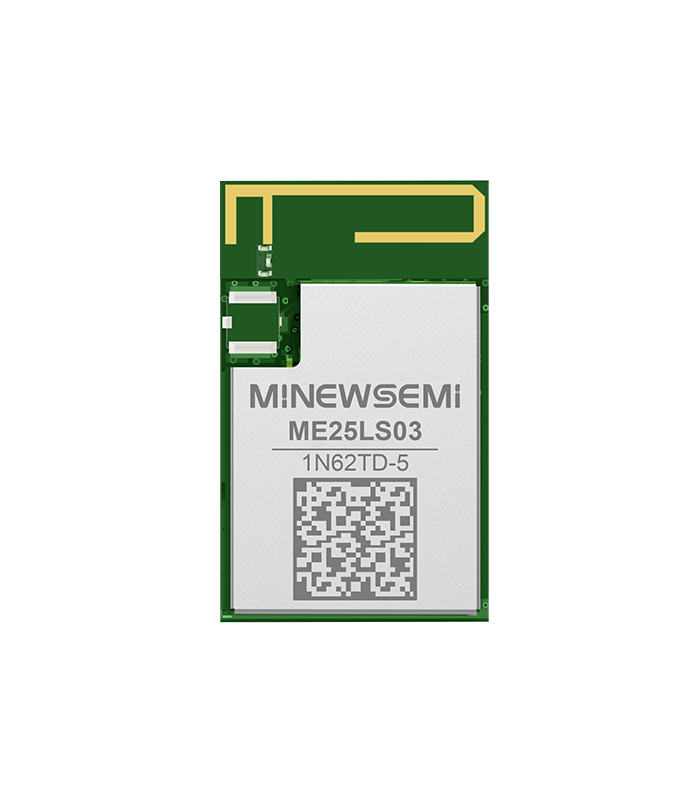

SX1262+nRF54L15-ME25LS03
Compact, long-range, ultra-low-power, supporting BLE 6.0 and LoRaWAN
- Dual-Core Architecture: Arm® Cortex-M33 + RISC-V
- High Reliability: Integrated TXCO ensures stable and accurate frequency performance
- Ultra-Low-Power Design: Optimized dual-chip low-power architecture
- Multi-Protocol Support: BLE 6.0 (including long-range mode) and LoRaWAN.
- Rich Interfaces: USB, UART, I2C, and multiple GPIOs for flexible expansion
- Open Development Support: Fully open-source platform enables secondary development and customized applications
$7.20
Click the button to buy related accessories:
| Model No. | ME25LS03 |
|---|---|
| Antenna | 2.4G: PCB/U.FL LoRa: ANT PIN |
| SoCset | nRF52840+SX1262 |
| Transmission Range | 3.5KM |
| Dimension (mm) | 25×15×3.2mm |
| Emission Current | 159mA |
| Receiving Current | 16.95mA |
| Reception Sensitivity | BLE: -96dBm, 1Mbps; -104dBm, 125Kbps
LoRa: -146dBm |
| Transmission Power | BLE: +8dBm LoRa: +22dBm |
| GPIO | 25 |
| Characteristic | Internal RAM: 256KB Flash: 1.5M LoRaWAN protocol 1.0.3 BLE 6.0, Multiple IO interfaces such as UART/ADC/SP |
