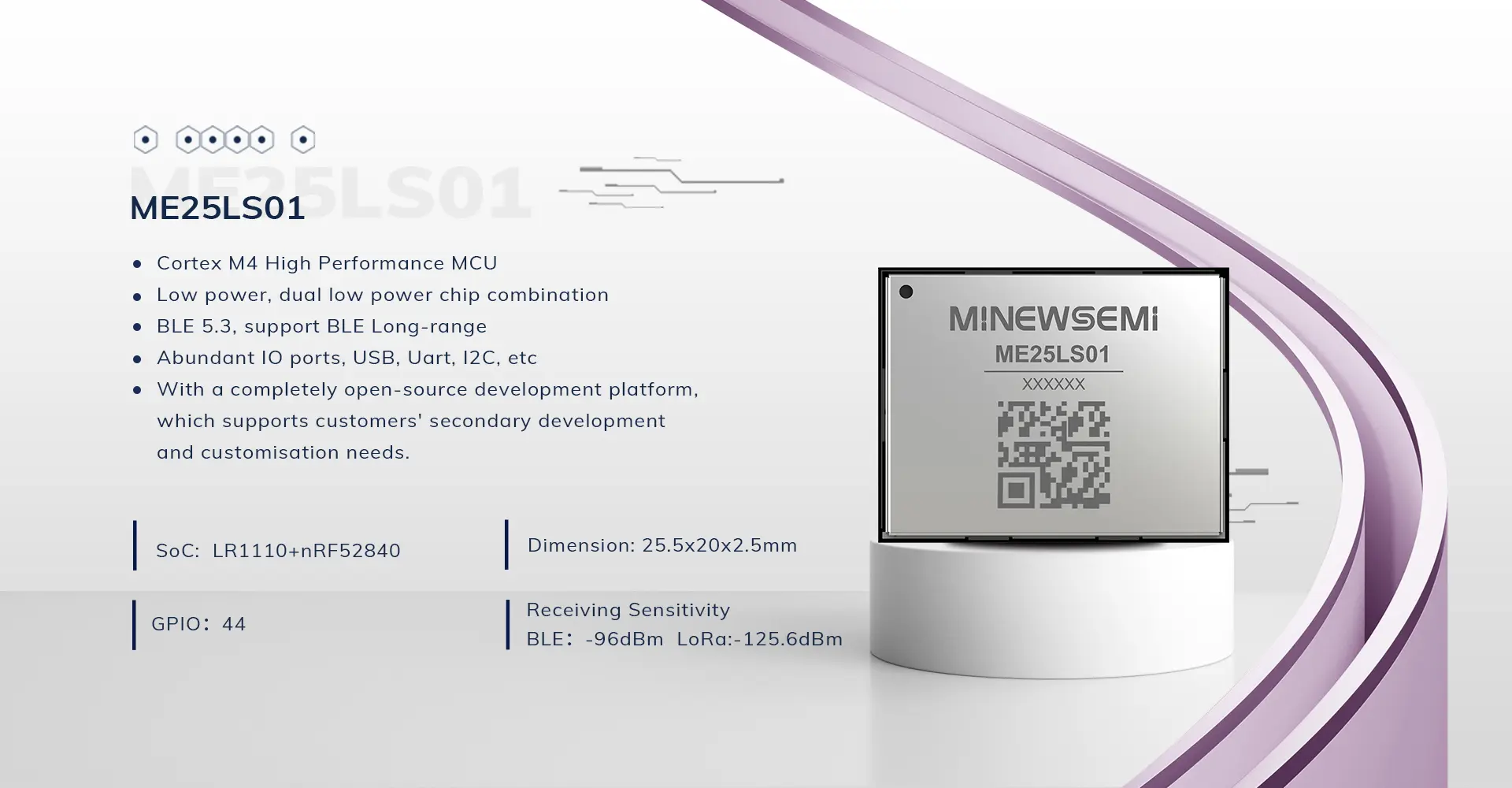

LR1110+nRF52840-ME25LS01

LoRa+WiFi+BLE+GNSS (GPS/BDS) Combo Module

  • Cortex M4 high performance MCU
  • Low power, dual low power chip combination
  • BLE 5.3, supports BLE long-range
  • Abundant IO ports, USB, Uart, I2C, etc
  • With a completely open-source development platform, which supports customers’ secondary development and customization needs.

$11.00

Compare
Add to wishlist

Click the button to buy related accessories:

Buy ME25LS01+MX25LE01 Development Kit

ME25LS01

Model No. ME25LS01
Antenna /
SoCset nRF52840+LR1110
Transmission Range 5KM
Dimension(mm) 25.5×20×2.6mm
Emission Current 118mA
Receiving Current 10.7mA
Reception Sensitivity BLE：+6dBm LoRa：+22dBm
Transmission Power BLE：-96dBm LoRa：-125.6dBm
GPIO 44
Characteristic Internal RAM: 256KB
Flash: 1M
LoRaWAN protocol 1.0.3
WiFi protocol，GNSS protocol，BLE protocol
Multiple I/O interfaces

ME25LS01

ME25LS01_LR1110_Datasheet_K_EN
Model No. ME25LS01
Antenna /
SoCset nRF52840+LR1110
Transmission Range 5KM
Dimension(mm) 25.5×20×2.6mm
Emission Current 118mA
Receiving Current 10.7mA
Reception Sensitivity BLE：+6dBm LoRa：+22dBm
Transmission Power BLE：-96dBm LoRa：-125.6dBm
GPIO 44
Characteristic Internal RAM: 256KB
Flash: 1M
LoRaWAN protocol 1.0.3
WiFi protocol，GNSS protocol，BLE protocol
Multiple I/O interfaces

ME25LS01

ME25LS01_LR1110_Datasheet_K_EN
