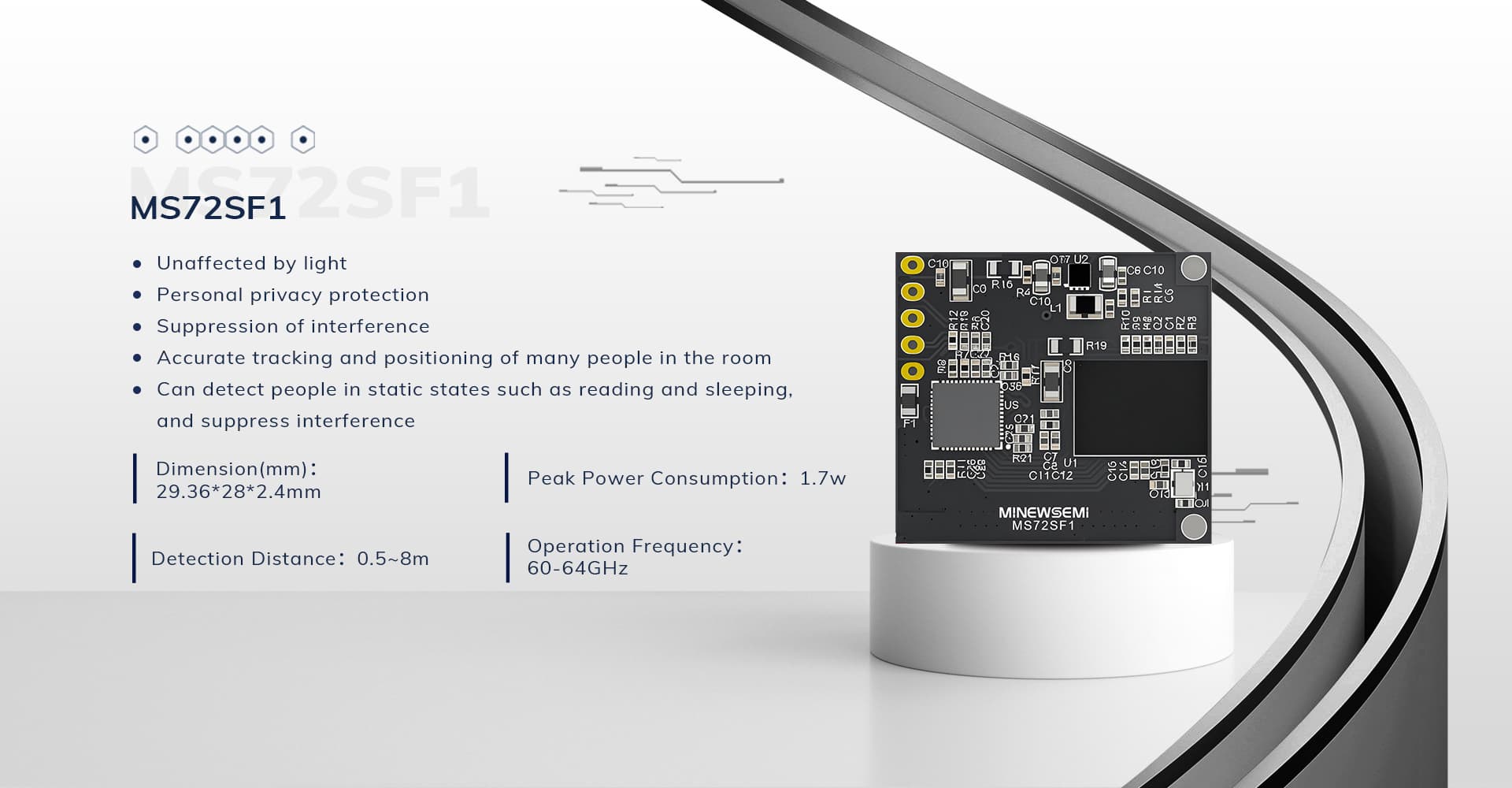

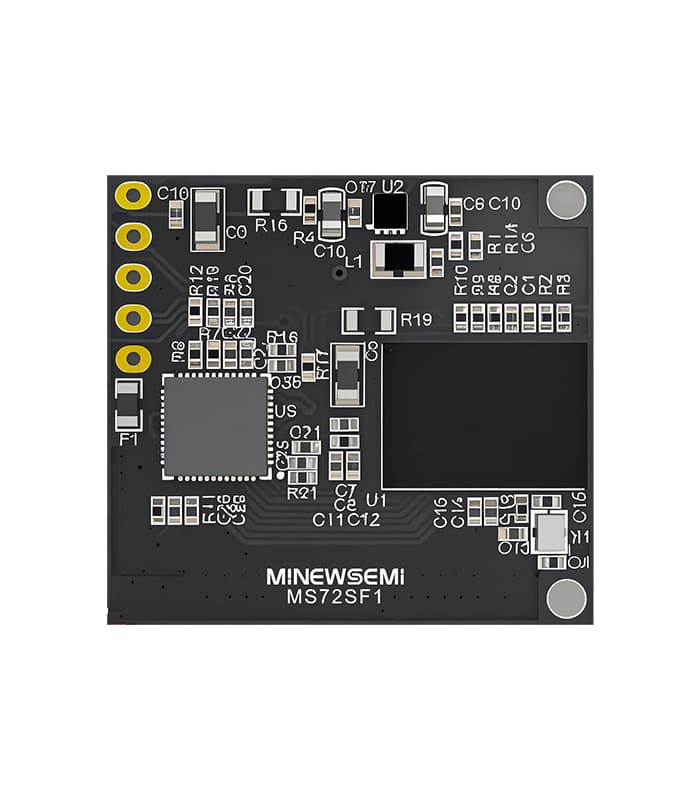

60GHz Millimeter-Wave Radar Module for High-Precision Sensing

  • Supports multiple target counting, motion tracking, and trajectory tracing indoors.
  • Can detect people in static states such as reading and sleeping, and suppress interference
  • Unaffected by light.
  • Personal privacy protection.



$20.00

Compare
Add to wishlist

Click the buttons to buy related accessories:

Buy USB to UART Module

MS72SF1

Model No. MS72SF11
Dimension(mm) 29.36*28*2.4mm
Installation Method Ceiling Mount
 Peak Power Consumption 1.7w
Detection Distance 0.5~8m
Tracking Number ≤10
Operation Frequency 60-64GHz
Processing Cycle ≤30ms
Average Power Consumption 0.3w

MS72SF1_Datasheet_K_EN
Model No. MS72SF11
Dimension(mm) 29.36*28*2.4mm
Installation Method Ceiling Mount
 Peak Power Consumption 1.7w
Detection Distance 0.5~8m
Tracking Number ≤10
Operation Frequency 60-64GHz
Processing Cycle ≤30ms
Average Power Consumption 0.3w

MS72SF1_Datasheet_K_EN
