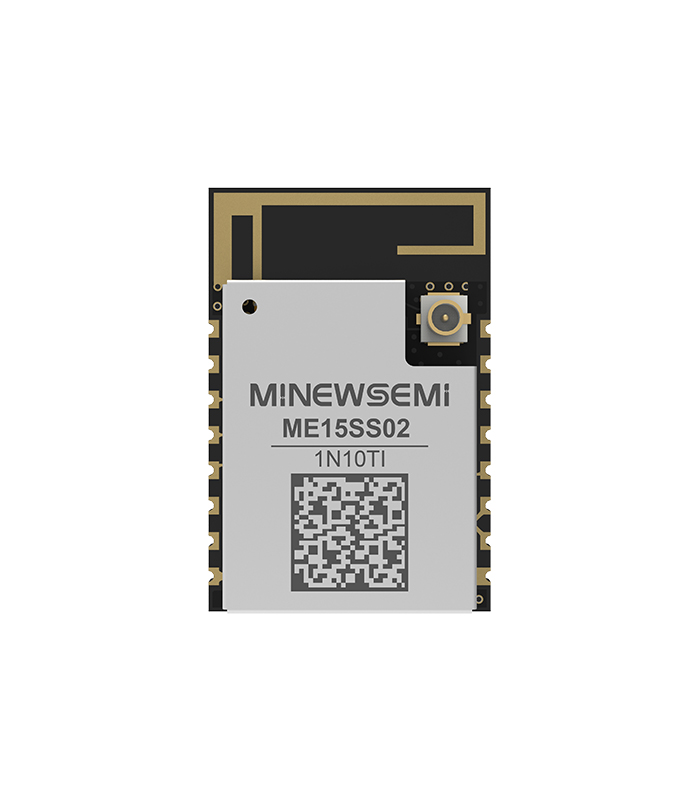

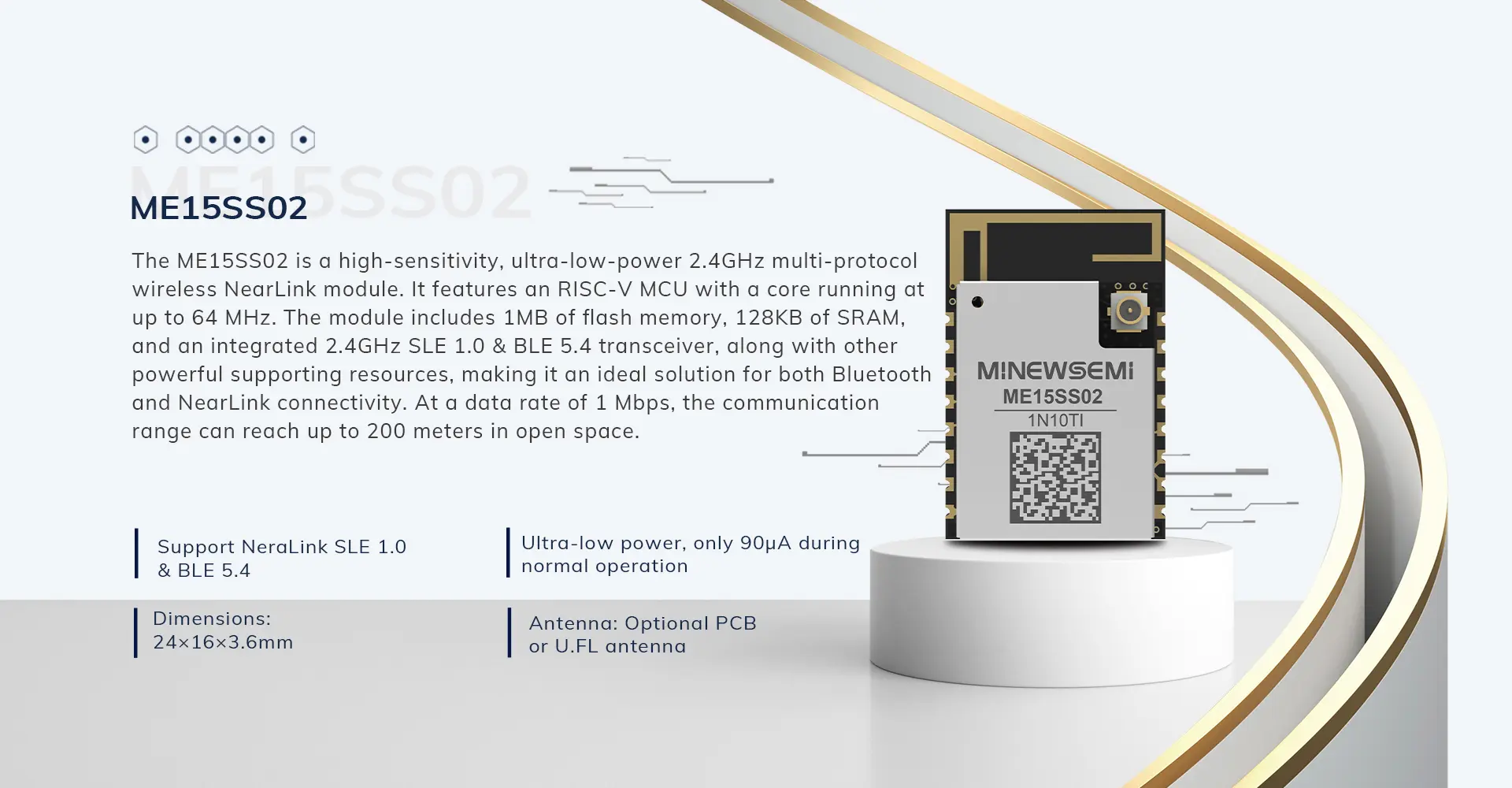

ME15SS02

High-sensitivity, ultra-low-power, large-memory-capacity, SLE 1.0 & BLE 5.4 NearLink Module

NeraLink SLE 1.0 & BLE 5.4.
Ultra-low-power consumption, only 90μA during normal operation.
Supports high data throughput, with a maximum physical data rate of up to 12 Mbps.
Default onboard PCB antenna, optional IPEX connector.
Rich peripheral interfaces with 14 GPIOs, compatible with SPI, ADC, UART, I2C, and more.
Ultra-long transmission range of up to 200 meters.

$3.00

Model No.	ME15SS02
Antenna	PCB/IPEX
SoCset	TR5310
Dimensions (mm)	24×16×3.3mm
Bluetooth Version	BLE 5.4
SparkLink Version	SLE 1.0
Flash	1MB
RAM	128KB
Emission Current	50mA
Receiving Current	90μA
Sleep Current	10μA
GPIO	14
Certification	/
Applications	UART/USB interface communication, support BLE 5.4, SLE1.0 multi-protocol and high-speed

Model No.	ME15SS02
Antenna	PCB/IPEX
SoCset	TR5310
Dimensions (mm)	24×16×3.3mm
Bluetooth Version	BLE 5.4
SparkLink Version	SLE 1.0
Flash	1MB
RAM	128KB
Emission Current	50mA
Receiving Current	90μA
Sleep Current	10μA
GPIO	14
Certification	/
Applications	UART/USB interface communication, support BLE 5.4, SLE1.0 multi-protocol and high-speed
