MS14SF1

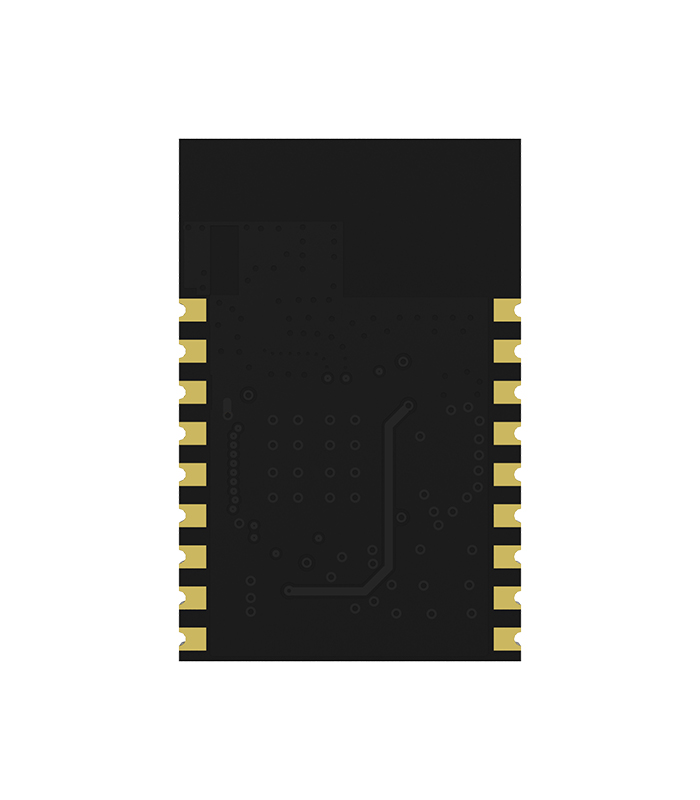

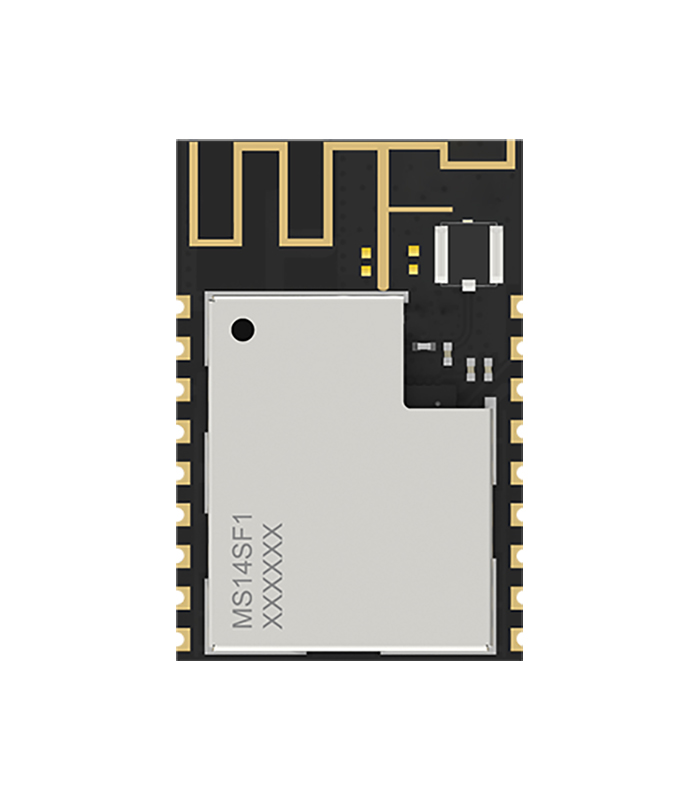

nRF7002-MS14SF1

Low-power, Dual-band 2.4G & 5G Wi-Fi 6 Module

  • Wi-Fi 6, low power
  • High cost-effective
  • Dual-band 2.4G + 5G, 1T1R
  • Support optional external antenna
  • Support TWT
  • Support STA/AP mode
  • Transmission distance in office environment: 80M

$6.50

Compare
Add to wishlist

MS14SF1

Model No. MS14SF1
Antenna PCB+IPEX
SoCset nRF7002
Wi-Fi  Version Wi-Fi 6(802.11 ax)
Bluetooth Version /
Dimension(mm) 22.9x15x3mm
Flash /
RAM /
Current(TX) 191mA-2.4G
260mA-5G
Current(RX) 2.4G-56mA
5G-56mA
Sleep Current 15μA
GPIO 13
Feature WiFi6, QSPI/SPI interface, STA mode

MS14SF1

MS14SF1-nRF7002_Datasheet_K_EN
Model No. MS14SF1
Antenna PCB+IPEX
SoCset nRF7002
Wi-Fi  Version Wi-Fi 6(802.11 ax)
Bluetooth Version /
Dimension(mm) 22.9x15x3mm
Flash /
RAM /
Current(TX) 191mA-2.4G
260mA-5G
Current(RX) 2.4G-56mA
5G-56mA
Sleep Current 15μA
GPIO 13
Feature WiFi6, QSPI/SPI interface, STA mode

MS14SF1

MS14SF1-nRF7002_Datasheet_K_EN
