ME3BGR03

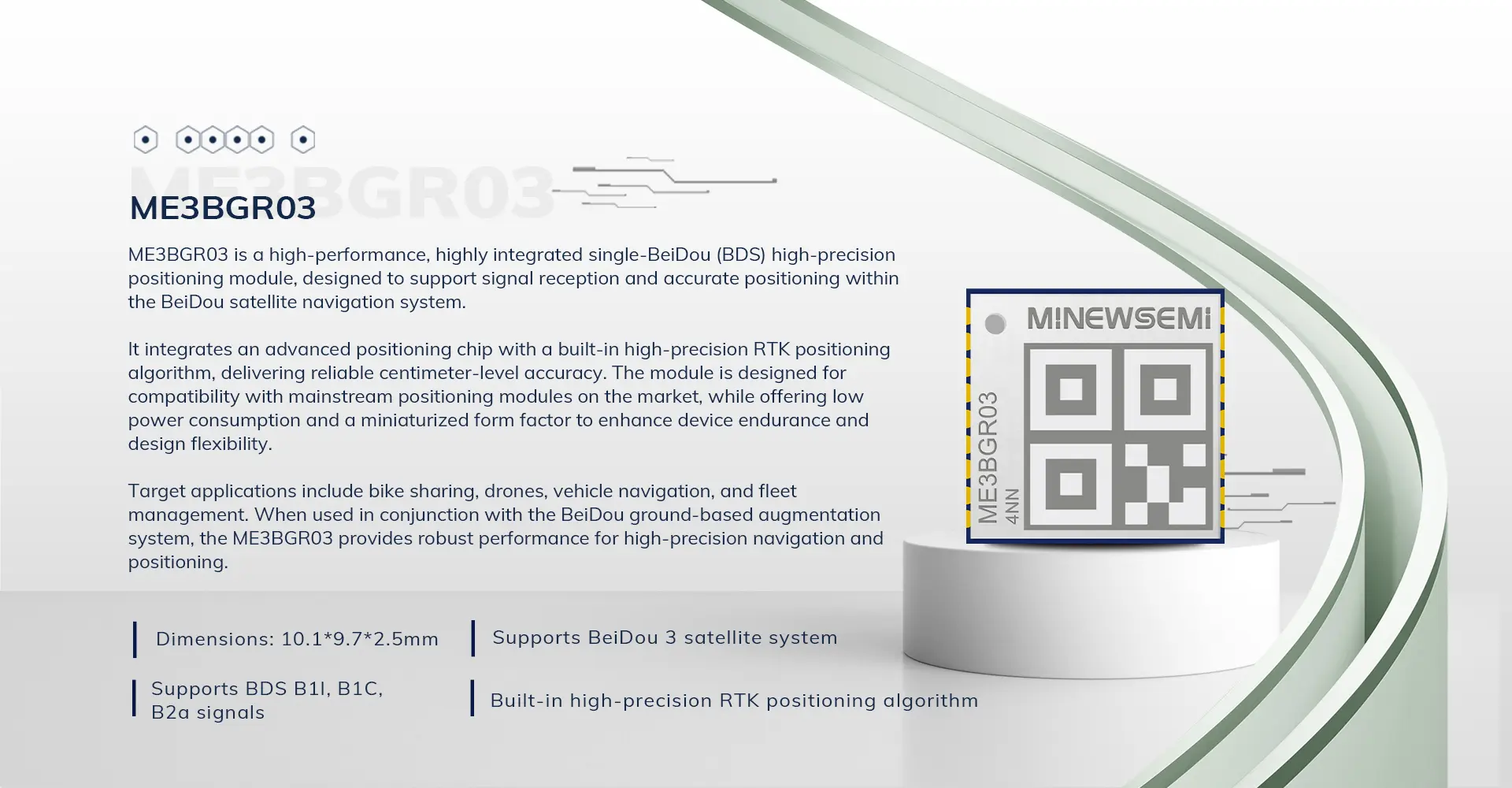

High Performance BeiDou B1I+B1C+B2a Dual-band RTK Module

  • Full Support for BeiDou-3 (BDS-3) Satellite System
  • Supports BDS B1I and B2a dual-frequency signals for independent single-BeiDou positioning
  • Equipped with a domestic high-precision positioning chip and an on-chip dual-frequency RTK engine
  • Dual-core architecture with ultra-high floating-point computing performance for fast and accurate positioning
  • Compact size and high integration, utilizing a surface-mount package for efficient mass production
  • Compatible with mainstream positioning modules, enabling easy upgrade and maintenance

$8.00

Compare
Add to wishlist

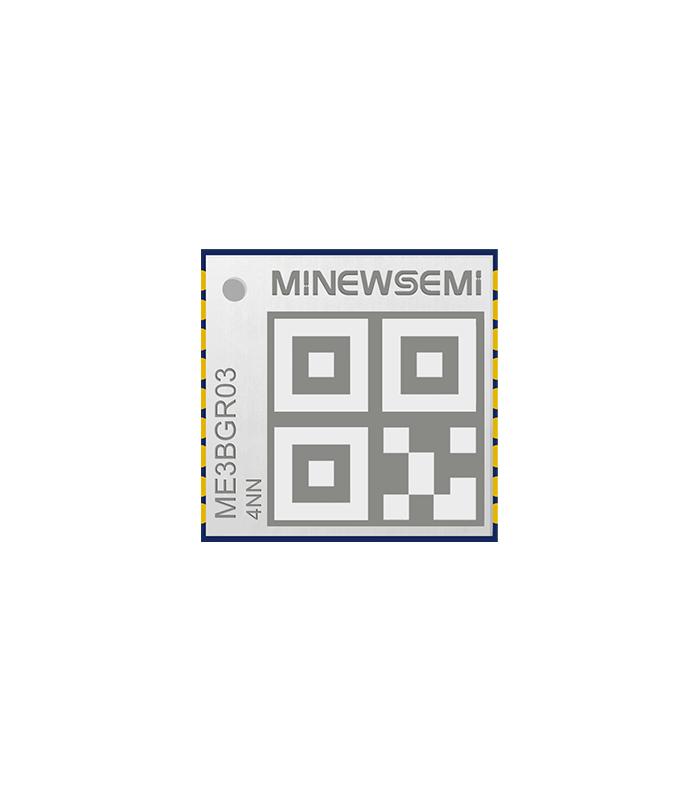

ME3BGR03 BDS module

Model No. ME3BGR03
Satellite System BDS:
B1I+B2a+B1C (Optional)
Ranging Accuracy ≤2m (CEP)

RTK: ≤1m (CEP)
Supply voltage 3.3V
Dimension(mm) 10.1×9.7×2.5
Operating current Acq: 29mA   Track: 45mA

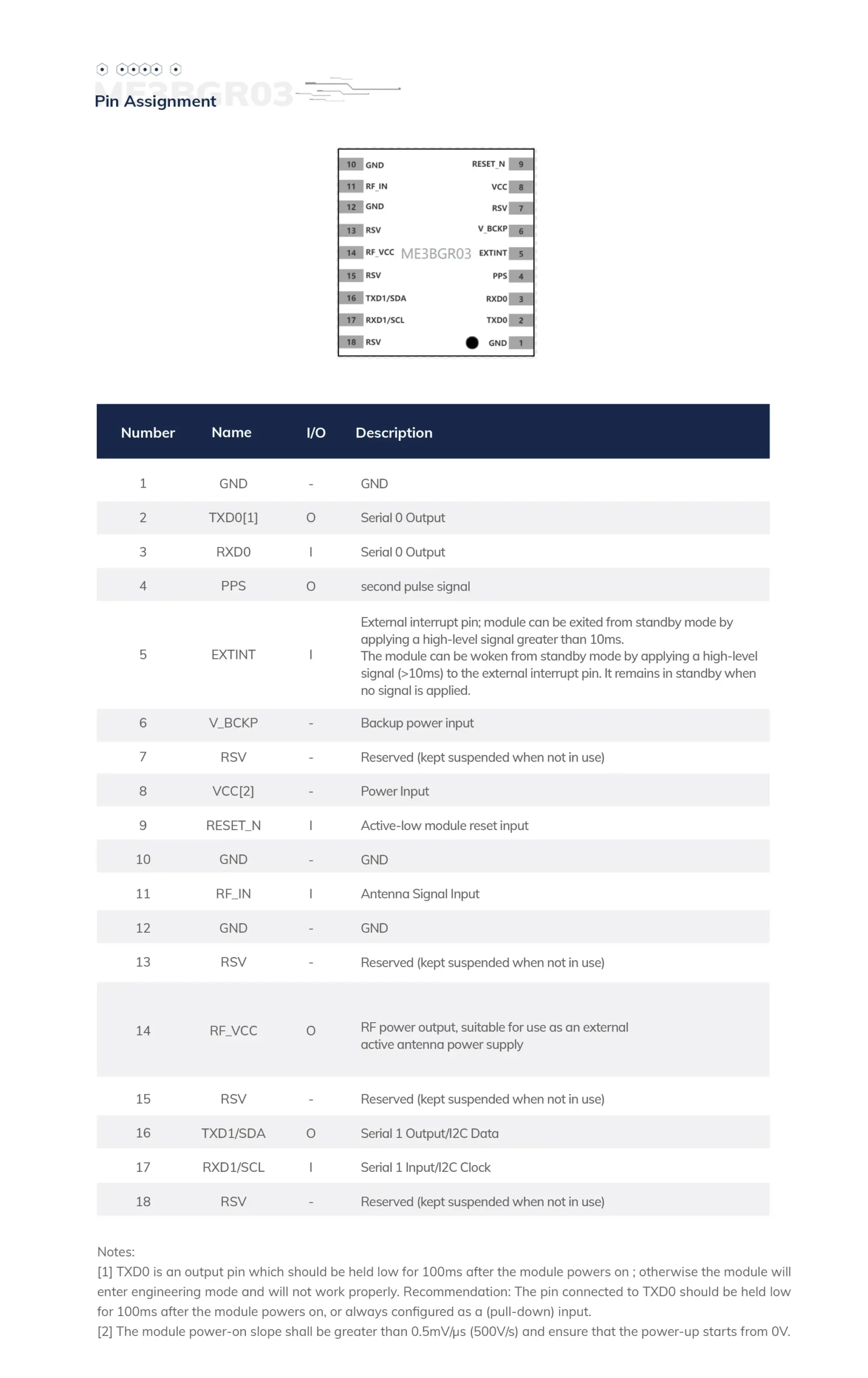

Pin Package LGA-18Pin
Output Mode UART (TTL)
Serial ports 1
Channel Acq/Track: 128
Tracking Sensitivity -166dBm
Ex-LNA enabled Y
Algorithm PVT
Features Single BeiDou, Dual-band RTK

ME3BGR03 BDS module

ME3BGR03_Datasheet_EN
Model No. ME3BGR03
Satellite System BDS:
B1I+B2a+B1C (Optional)
Ranging Accuracy ≤2m (CEP)

RTK: ≤1m (CEP)
Supply voltage 3.3V
Dimension(mm) 10.1×9.7×2.5
Operating current Acq: 29mA   Track: 45mA
Pin Package LGA-18Pin
Output Mode UART (TTL)
Serial ports 1
Channel Acq/Track: 128
Tracking Sensitivity -166dBm
Ex-LNA enabled Y
Algorithm PVT
Features Single BeiDou, Dual-band RTK

ME3BGR03 BDS module

ME3BGR03_Datasheet_EN
