nRF54L15-ME54BS11 Bluetooth 6.0 Module

nRF54L10-ME54BS11

Cost-effective, Ultra-low Power Bluetooth 6.0 LE Module with PCB Antenna

  • Supports Bluetooth LE 6.0 Channel Sounding, Bluetooth Mesh, Zigbee, Thread, Matter, and proprietary 2.4 GHz protocols
  • Equipped with 128 MHz Arm Cortex-M33 processor
  • Compact dimensions: 15.8*12*2mm
  • Superior transmission power: -8~+8 dBm
  • Exceptional receiver sensitivity: -96 dBm at 1Mbps
  • 1.0 MB non-volatile memory + 192 KB RAM
  • Operating temperature range:-40°C~+105°C

$4.20

Compare
Add to wishlist

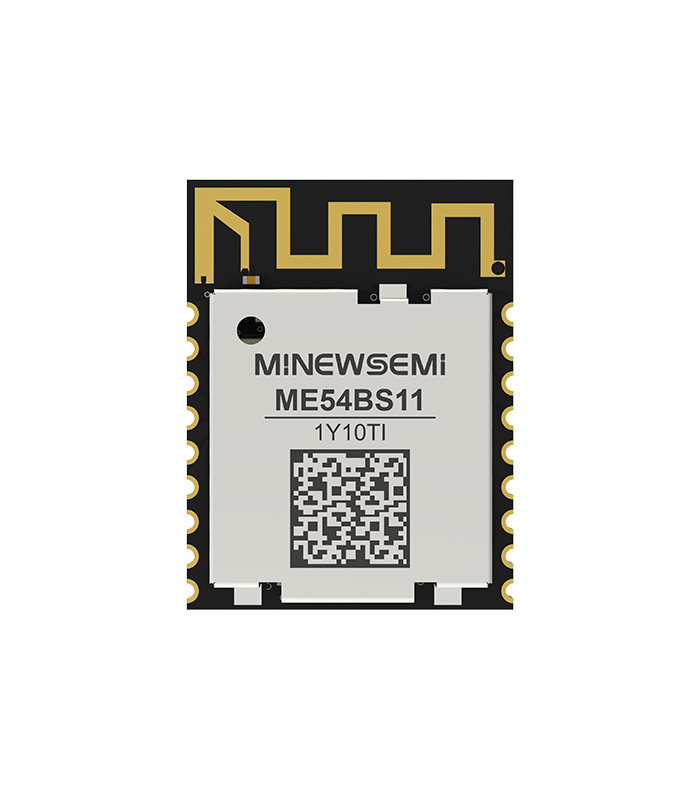

nRF54L10-ME54BS11 Bluetooth 6.0 Module

Model No. ME54BS11
Antenna PCB
SoCset Nordic nRF54L10
Max Range 80M
Dimension(mm) 15.8×12×2.0mm
Flash 1.0MB
RAM 192KB
Reception Sensitivity -96dBm
Transmission Power -8~+8dBm
Current(TX) 0dBm-5mA
Current(RX) 3.2mA
GPIO 12
Certification /
Applications Computer accessories, Game controllers and remotes, Virtual reality and augmented reality, Smart home, Medical devices, Industrial IoT

nRF54L15-ME54BS11 Bluetooth 6.0 Module Pin Definition

ME54BS11-nRF54L10_Datasheet_K_EN
