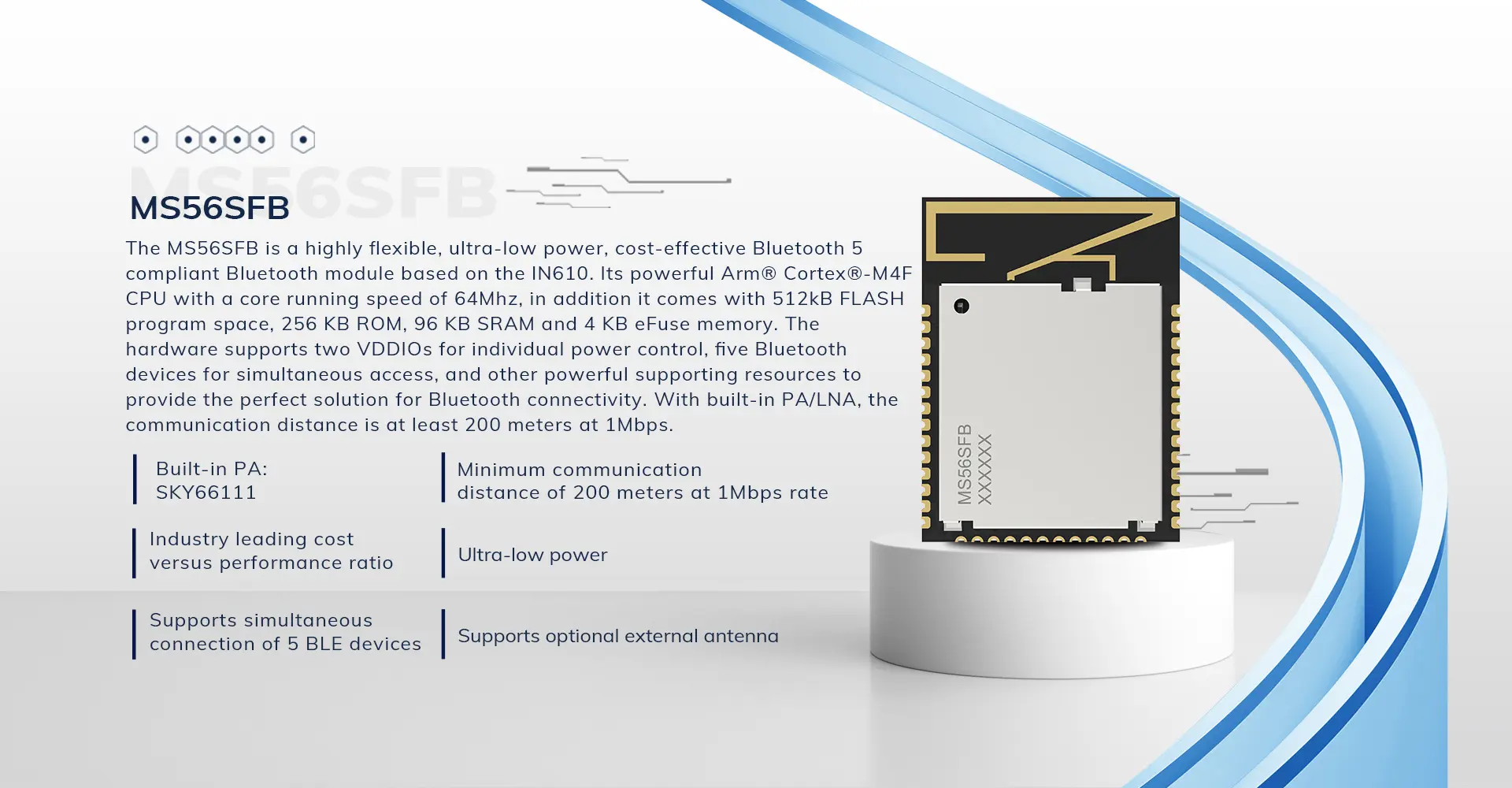

| Model No. | MS56SFB |
|---|---|
| Antenna | PCB |
| SoCset | INPLY-IN610 |
| Max Range | 180~400M |
| Dimension(mm) | 23.2×17.4×2mm |
| Flash | 512KB |
| RAM | 256KB |
| Reception Sensitivity | -97.5dBm |
| Transmission Power | ~+13dBm |
| Current(TX) | 10dBm-15mA |
| Current(RX) | 5mA |
| GPIO | 24 |
| Certification | / |
| Applications | Smart lighting, Smart lock, Industrial internet, Intelligent medical care, Toys, Function switches |
How much storage space is available? Is there a WiFi module with more than 4M storage？
The module has built-in 64KB RAM and 256KB Flash
