ME25LS02 LoRaWAN+BLE Combo Module

LLCC68+nRF54L15-ME25LS02

Ultra-Long-Range, Ultra-Low-Power LoRaWAN+BLE Combo Module

  • Dual-core MCU: ARM Cortex-M33 + RISC-V
  • Multi-protocol support: Bluetooth Mesh, Zigbee, Thread, Matter & more
  • Rich interfaces: 27 GPIOs, USB, UART, I2C
  • LoRaWAN range: 15+ km in rural areas
  • Global certifications (CE, FCC) coming soon

$6.50

Compare
Add to wishlist

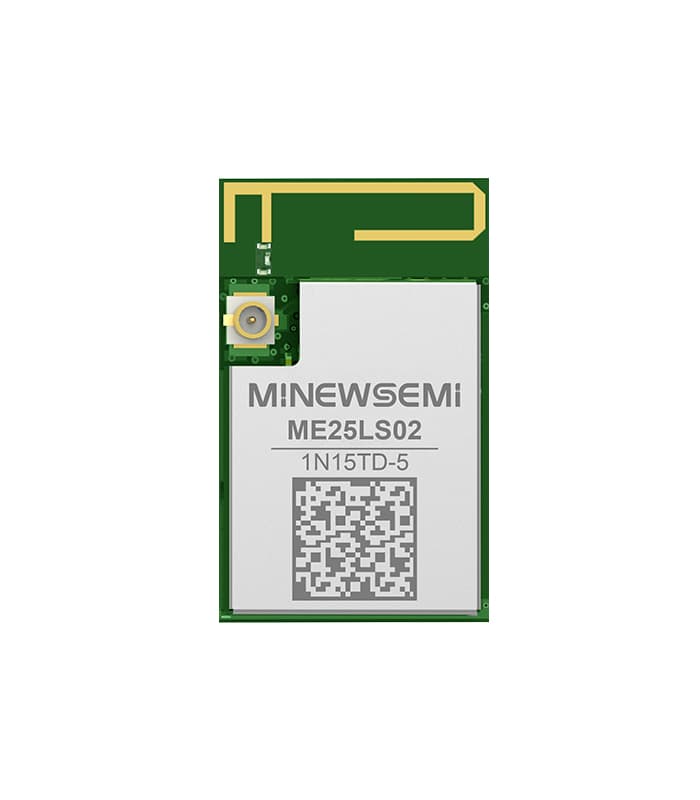

ME25LS02 LoRaWAN+BLE Combo Module

Model No. ME25LS02
Antenna PCB+IPEX
SoCset nRF52840+LLCC68
Transmission Range 5KM
Dimension(mm) 25×15×3.2mm
Emission Current 156mA
Receiving Current 15mA
Reception Sensitivity BLE: -96dBm, 1Mbps LoRa: -125dBm
Transmission Power BLE: +8dBm LoRa: +22dBm

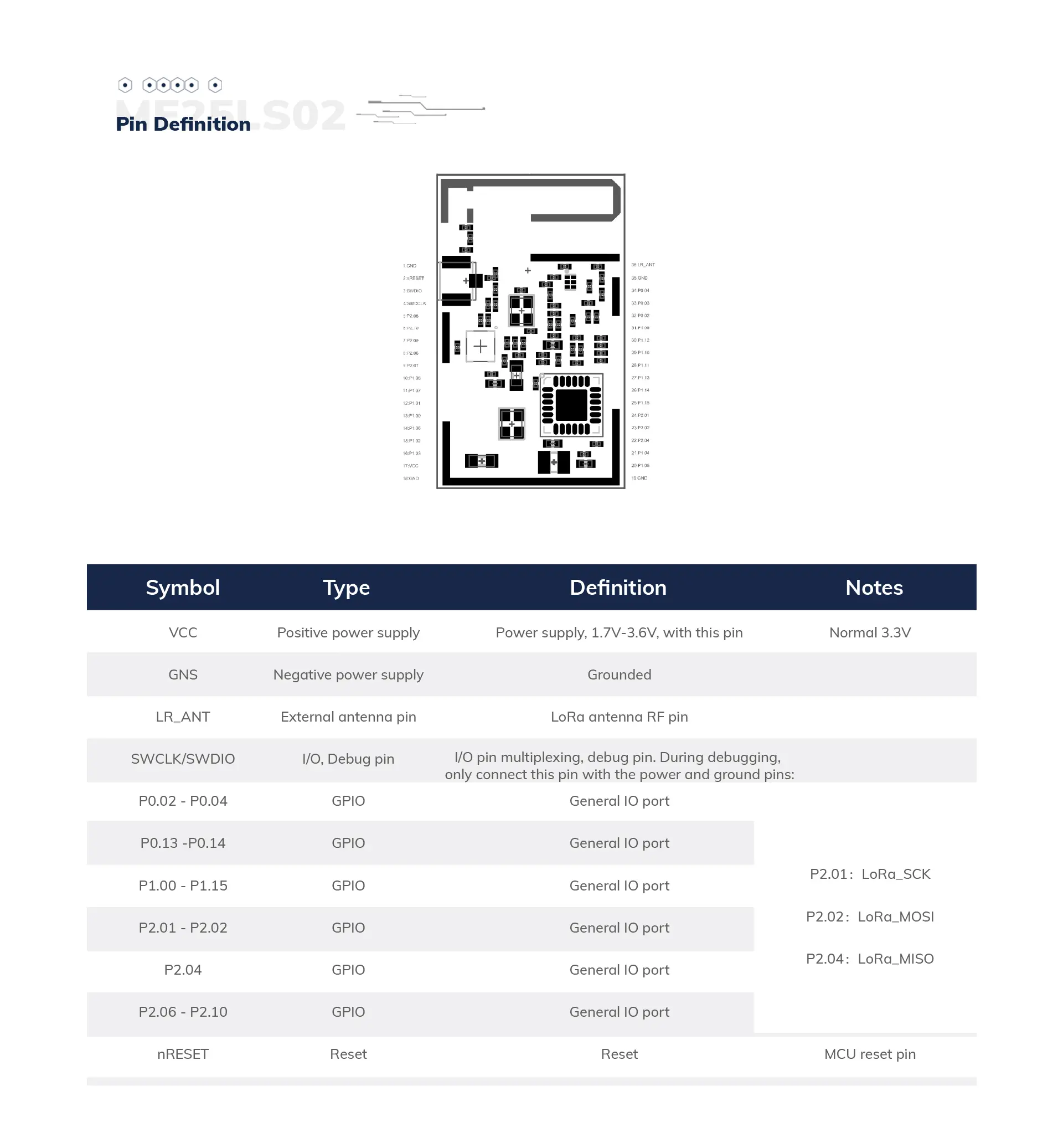

GPIO 27
Characteristic Internal RAM: 256KB
Flash: 1.5M
LoRaWAN protocol 1.0.3
BLE 6.0, Multiple IO interfaces such as UART/ADC/SP

ME25LS02 LoRaWAN+BLE Combo Module

ME25LS02_LLCC68&SX1262_Datasheet_K_EN
