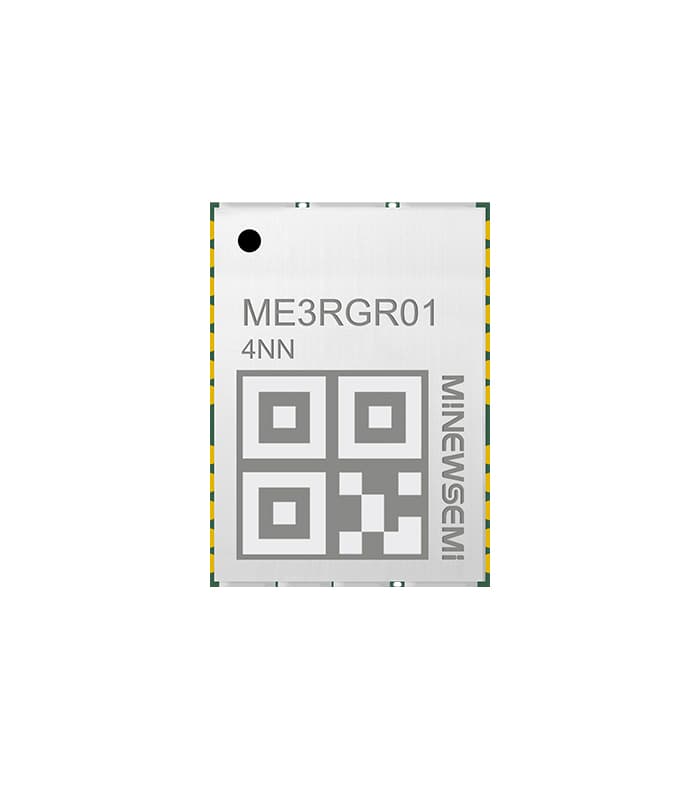

ME3RGR01
High-Precision RTK GNSS Module | L1+L5 Dual-Frequency, Multi-Constellation
- High-Precision Positioning: Centimeter-Level Accuracy with RTK
- Dual-Frequency GNSS: L1 + L5 for Enhanced Stability & Accuracy
- Multi-Constellation Support: GPS, BeiDou, GLONASS, Galileo + More
- Fast & Reliable Positioning: High Sensitivity & Fast TTFF
- Strong Anti-Interference: Stable Performance in Complex Environments
- Low Power Consumption: Optimized for Battery-Powered Devices
- Compact Size: 16 × 12 mm for Easy Integration
$8.20
| Model No. | ME3RGR01 |
|---|---|
| Satellite System | GPS: L1 C/A, L5
BDS: B1I, B1C, B2a, GLONASS: L1 GALILEO: E1, E5a QZSS：L1 C/A, L5 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM IRNSS/NAVIC: L5 |
| Ranging Accuracy | ≤1m (CEP), RTK: ≤1m (CEP) |
| Supply Voltage | 3.3V |
| Dimension(mm) | 16.0×12.2×2.6 |
| Operating Current | Acq: 25mA Track: 23mA |

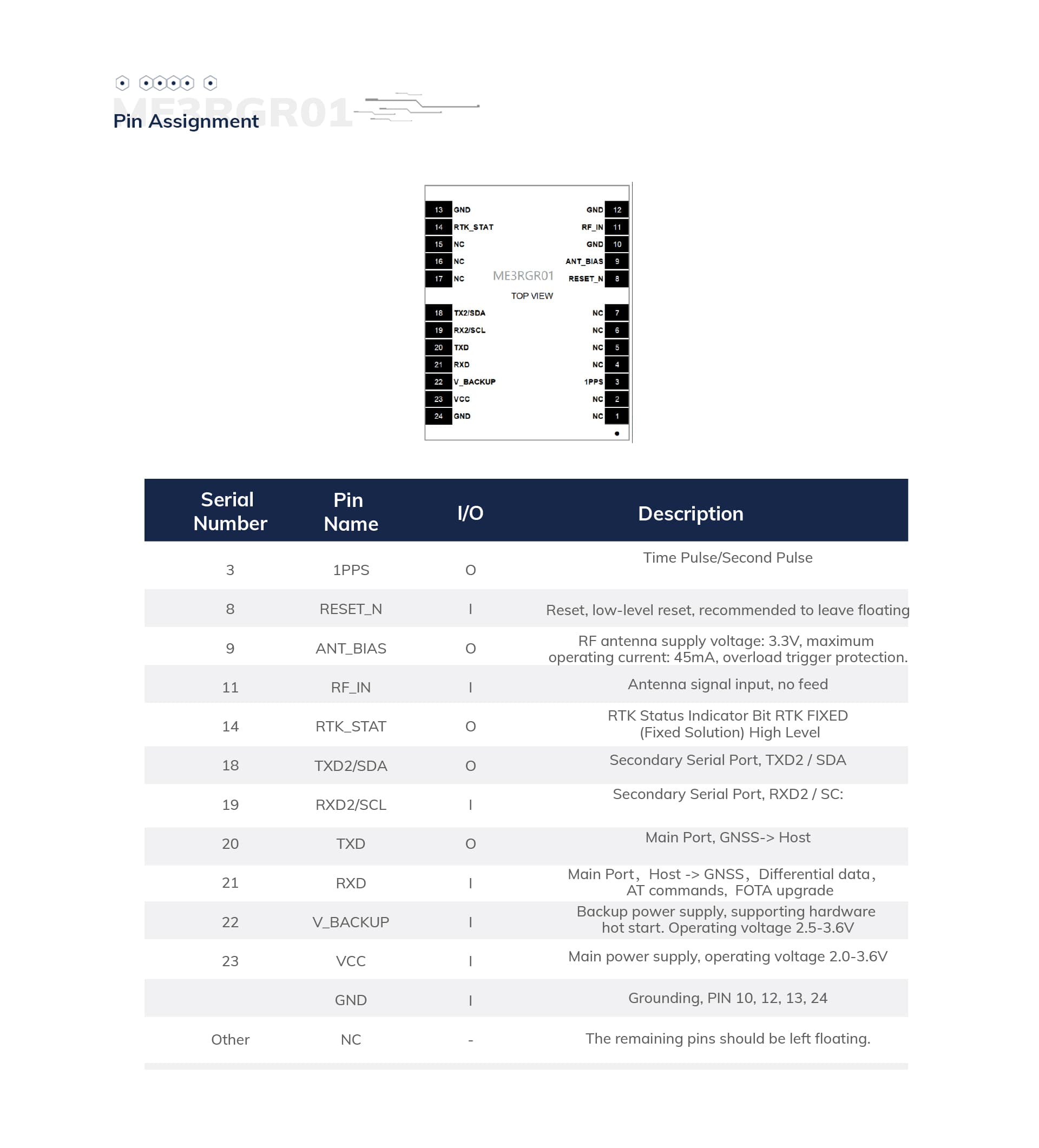

| Pin Package | LCC-24Pin |
| Output Mode | UART (TTL) |
| Serial Ports | 2 |
| Channel | Acq: 192 Track: 200 |
| Tracking Sensitivity | -165dBm |
| Ex-LNA Enabled | Y |
| Algorithm | RTK algorithm, PVT |
| Features | L1 + L5 Dual-Frequency, RTK Centimeter-Level Accuracy, Multi-Constellation GNSS, Fast & Reliable Positioning |
