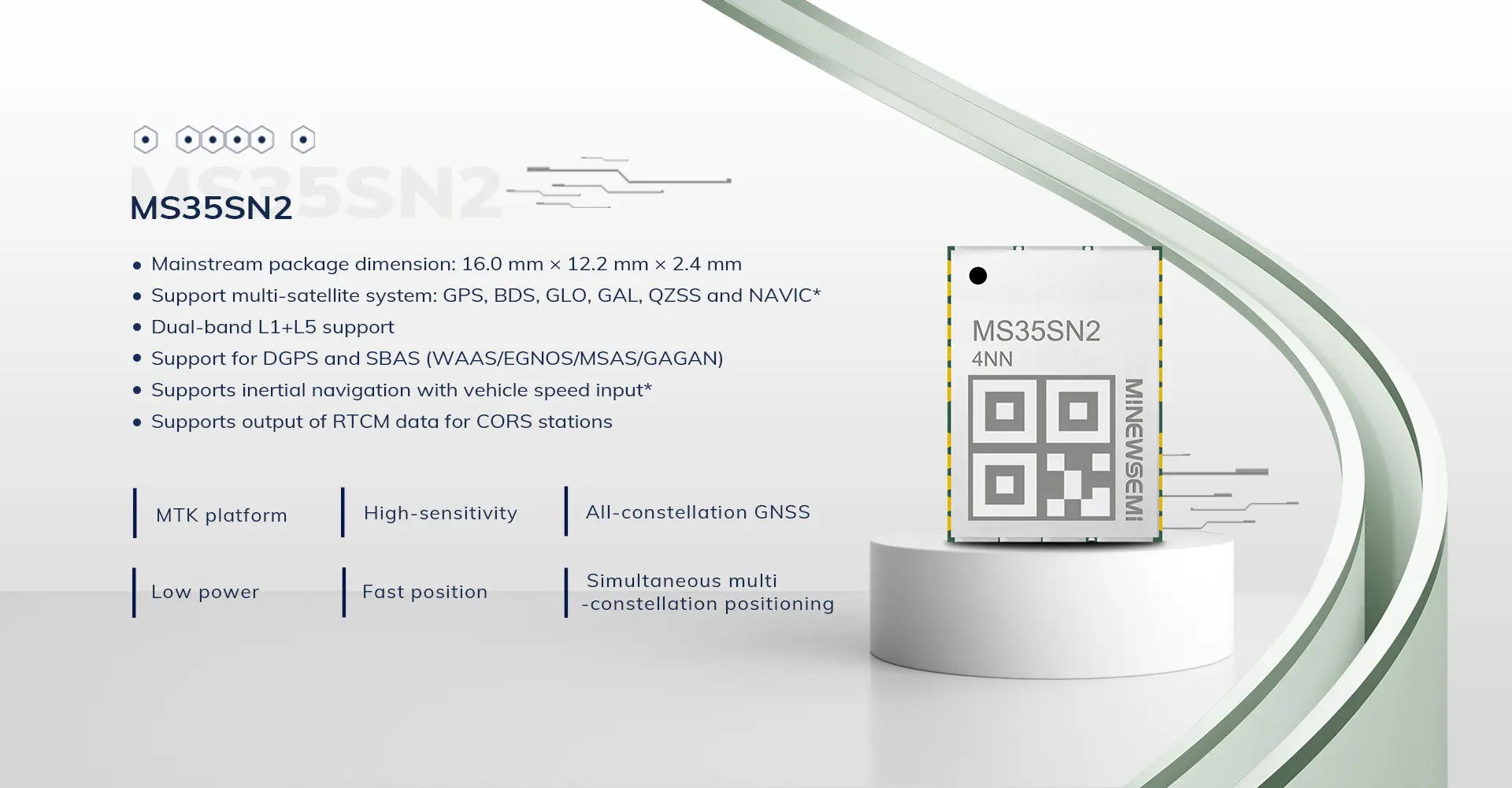

Low Power & Support Simultaneous Multi-constellation Positioning All-constellation GNSS Module

  • Mainstream package dimension: 16.0 mm x 12.2 mm x 2.4 mm
  • Support multi-satellite system: GPS, BDS, GLO, GAL, QZSS and NAVIC*
  • Dual-band L1+L5 support
  • Integrated 6-axis sensor (3-axis gyroscope + 3-axis accelerometer)
  • Support for DGPS and SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • Supports inertial navigation with vehicle speed input*
  • Supports output of RTCM data for CORS stations

$12.00

2000 in stock

Compare
Add to wishlist

MS35SN2

Model No. MS35SN2
Satellite System GPS L1+L5
BDS B1I+B2C
GLONASS G1
GALILEO E1+E5
SBAS: L1
IRNSS L5*
Ranging Accuracy ≤1.2m (CEP)
Supply voltage 3.3V
Dimension(mm) 16×12.2×2.6mm
Operating current Acq:11mA   Track:9mA
Pin Package LCC-24pin
Output Mode UART(TTL)
Serial ports 2
Channel Acq:217  Track: 135
Tracking Sensitivity -165dBm
Ex-LNA enabled N
Algorithm Support Original Observation Data Output PVT
Feature Simultaneous Multi-constellation positioning, MTK platform, High sensitivity, All-constellation GNSS

MS35SN2

MS35SN2-Brief-MinewSemi
