New
ME72MS02

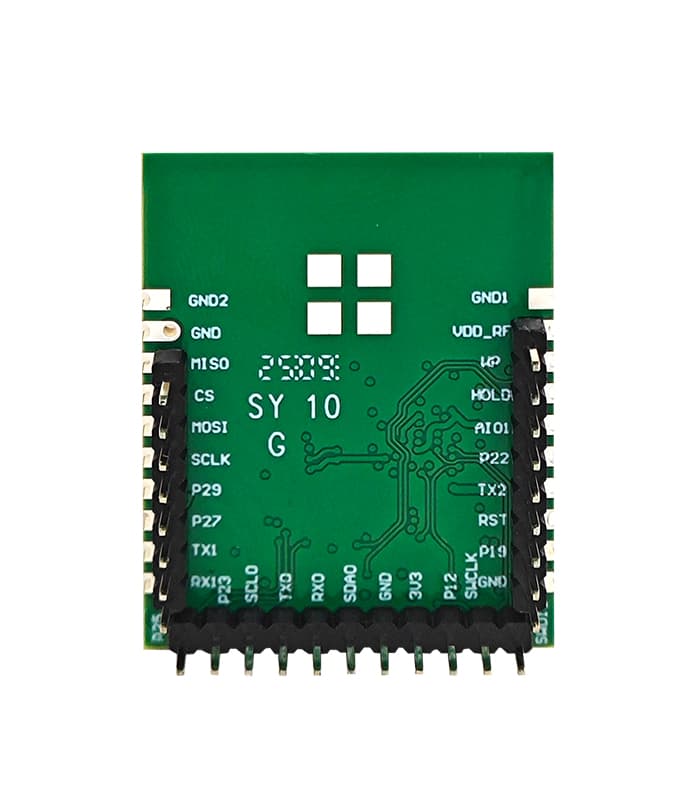

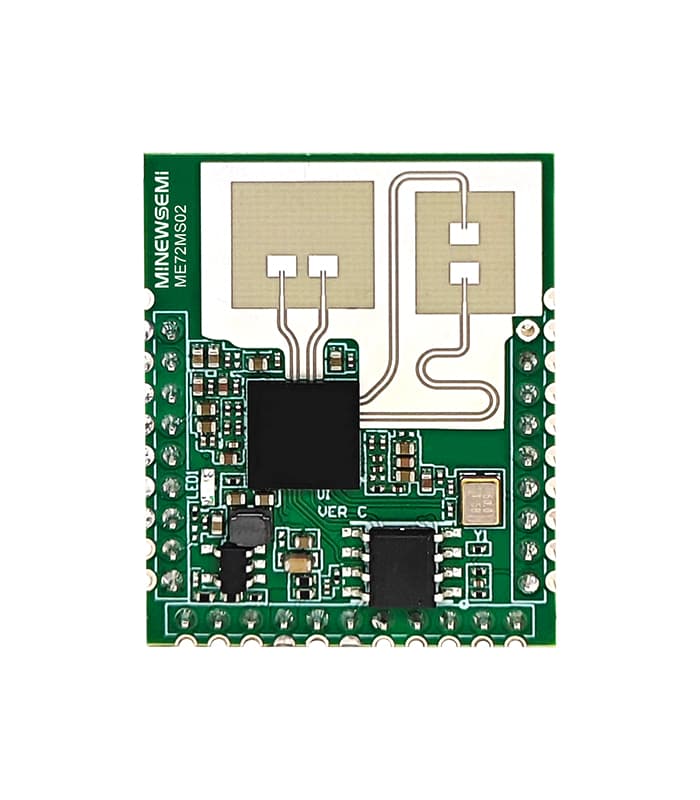

60GHz mmWave Radar Module for Real-Time Single-Person Respiration & Heart Rate Monitoring
- FMCW-based millimeter-wave radar sensing
- Non-contact respiration and heart rate monitoring
- Up to 3 m detection distance
- Standard UART communication interface
- High-performance real-time monitoring for a single target
$9.00 – $15.00
Click the buttons to buy related accessories:
| Model No. | ME72MS02 |
|---|---|
| Dimension(mm) | 25×31×8.7mm |
| Installation Method | Ceiling/tilted mount |
| Peak Power Consumption | 1.98w |
| Detection Distance | Detection: 0.3-3 m Optimal: 0.5-2 m |
| Tracking Number | 1 |
| Operation Frequency | 57-64GHz |
| Processing Cycle | Real-time |
| Average Power Consumption | 1.39w |
| Firmware | Hex firmware |
| Model No. | ME72MS02 |
|---|---|
| Dimension(mm) | 25×31×8.7mm |
| Installation Method | Ceiling/tilted mount |
| Peak Power Consumption | 1.98w |
| Detection Distance | Detection: 0.3-3 m Optimal: 0.5-2 m |
| Tracking Number | 1 |
| Operation Frequency | 57-64GHz |
| Processing Cycle | Real-time |
| Average Power Consumption | 1.39w |
| Firmware | Hex firmware |
