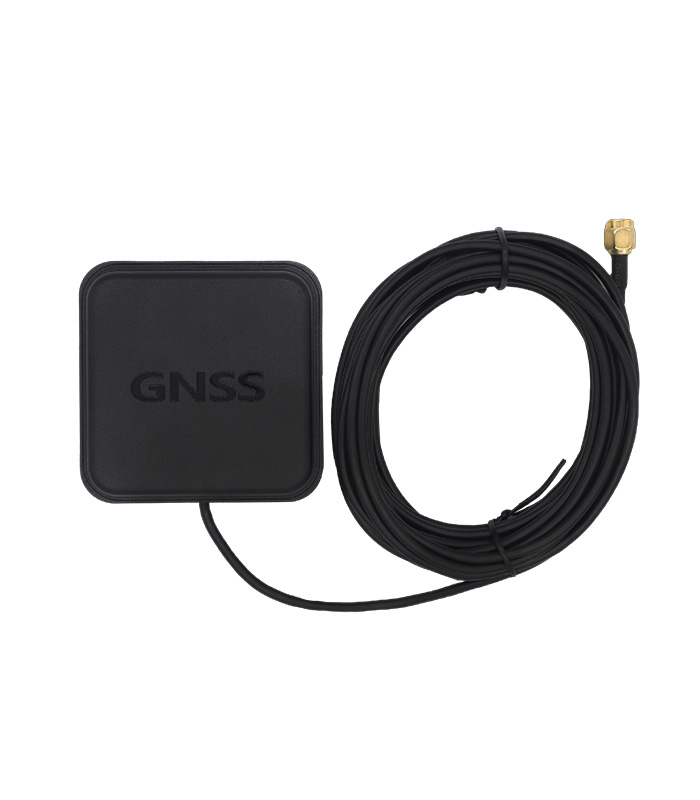

AG301-GNSS Active Antenna
- Supports GPS, BeiDou, and GLONASS multi-GNSS systems
- VSWR ≤ 1.5 with up to 3.5 dBi gain for stable signal reception
- RHCP ceramic antenna for reliable omnidirectional positioning performance
- Compact and durable design for long-term operation
- Suitable for navigation, tracking, and GNSS-enabled applications
- RoHS 2015/863/EU compliant
$3.20
| Antenna Element | 25*25*4mm & 35*35*4mm |
|---|---|
| Satellite System | GPS L1+L5 BDS B1l+B2a GLONASS G1 GALILEO E1+E5 |
| Receiving Frequency | 1176.45+10.23MHz 1559MHz~1606MHz |
| Ranging Accuracy | RTK ≤1cm (1σ) |
| Dimension(mm) | 66*66*26.5mm |
| Supply Voltage | 3.0~5.0V |
| Operating Current | ≤35mA |
| Antenna Gain | 3.5dBi |
| LNA Gain | 28±3dB |
| Output VSWR | ≤2.0 |
| Interface | SMA-J |
| Cable Length | 3.0m |
| Waterproof Rate | IP66 |
